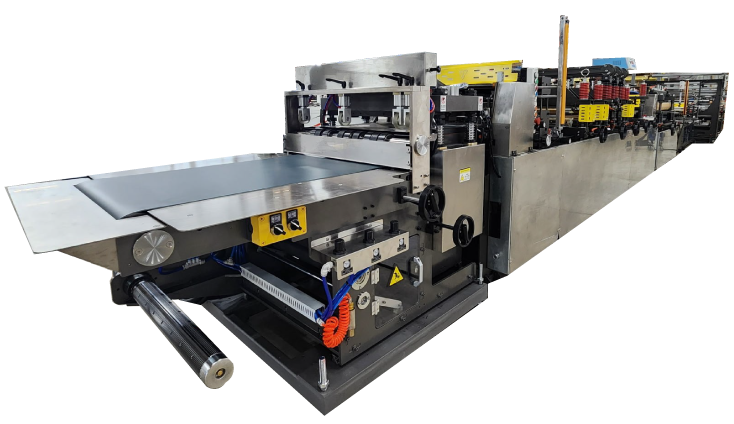

The XL Pouch Machine has been one of our most popular models thanks to its outstanding versatility in producing most all side-gusseted pouch configurations. Now the XL-DR model takes pouch making to a whole new level with the ability to create side gussets running just one web, and with exact registration of the  front, back and side gusset panels.

The XL-DR can produce all conventional stand-up pouches as well as registered gussets using either one or two films. This highly versatile machine can still produce inserted side gusset pouches, terminated and non-terminated side gusset bags, bag-in-bag formats, and apply zipper and Velcro closures, Applix eazy-lock closures, and child-resistant zippers. The XL machine comes standard with ultrasonic zipper sealing technology.

The dual registration and one-web gusseted pouch capabilities of the XL-DR machine now create significant opportunities for many companies with smaller digital printing presses. Companies with 13, 16 and 20-30 inch wide digital printing equipment can now produce world class pouch packaging with perfect front-to-back registration.

The XL-DR can still run all PE/PE webs up to 68 inches for some of the largest pouch products such as pet food, softener salt, fertilizer and other bulk materials. Complete fitment applications, custom die-cutting, and pouch handle options are also readily available

Product Details

• Most pouch formats of any pouch machine on the market
• Standup pouch, terminated and nonterminated side gusset bags, bag in bag formats, zipper , velcro, insert gusset, twin lane standup from one film, all PE/PE side gusset and stand up pouch, coffee with center, fin, lap, and side seal
• 180-220 CPM
• 1450MM max width film with 800MM diameter roll
• Servo driven and optional motor driven auto positioning heads
• Multiple attachments can be added, bottom fold glueing, terminated gussets, cross web zipper applicator, diecutting
• Ultrasonic zipper and apex sealing
• Double longitudinal for high speed side gusset and retort pouch with interchangeable positions with identical sizing for the separate adjustable chill station, pneumatic high lift heads for running PE/PE materials
• 5 or 6 Cross sealing heads and 3 or 6 longitudinal sealing heads
